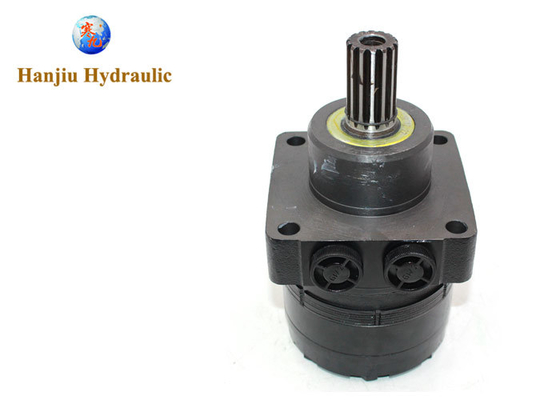

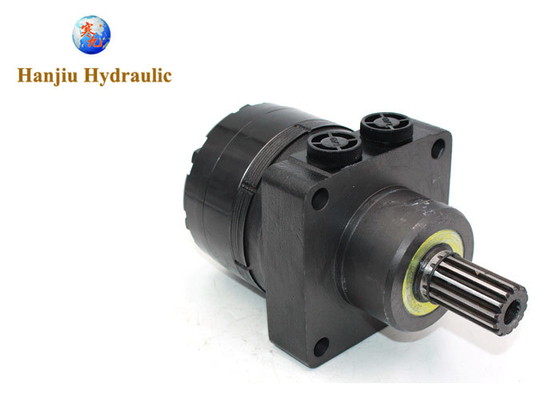

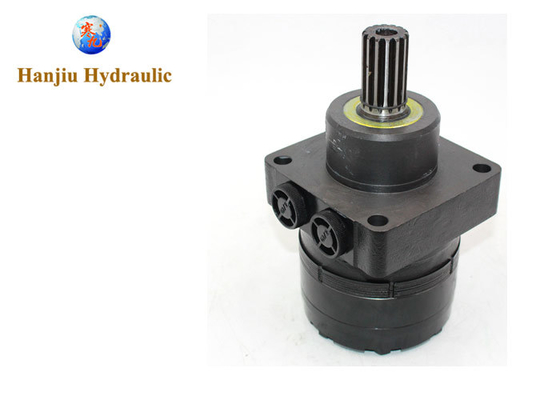

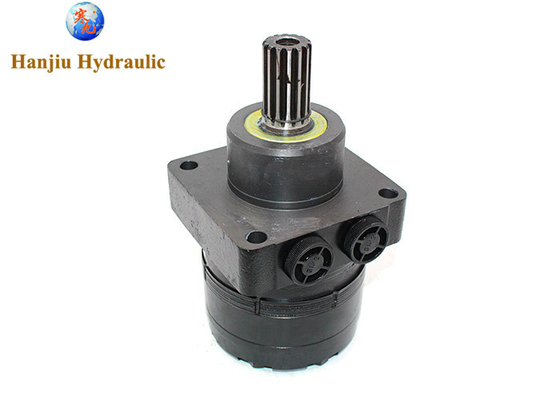

BMER-2-350 Hydraulic wheel motor matching Parker TG0335HW spline shaft BSPP 1/2 ports

BMER-2-350 Hydraulic wheel  motor matching Parker TG0335HW spline shaft BSPP 1/2 ports

تصویر بزرگ :  BMER-2-350 Hydraulic wheel motor matching Parker TG0335HW spline shaft BSPP 1/2 ports

جزئیات محصول:
محل منبع: چین
نام تجاری: HANJIU
گواهی: CE, ISO9001
شماره مدل: BMER-2-350-WD-FD1-RB
پرداخت:
مقدار حداقل تعداد سفارش: 100 قطعه
قیمت: 170 usd/pc
جزئیات بسته بندی: جعبه ، پالت
زمان تحویل: 35-45 روز کاری
شرایط پرداخت: T/T ، Western Union
قابلیت ارائه: 10000 قطعه در سال
توضیحات محصول جزئیات
محصول: موتور هیدرولیک با گشتاور بالا با سرعت پایین شماره شماره: BMER-2-350
اندازه: 350ml/r فلنج: فلنج چرخ
شفت: شفت اسپلاین چرخش: CCW
بندر: G1/2 مادی: چدن
برجسته کردن:

hydraulic wheel motor Parker TG0335HW,low speed high torque hydraulic motor,hydraulic motor BSPP 1/2 ports

,

low speed high torque hydraulic motor

,

hydraulic motor BSPP 1/2 ports

BMER-2-350 Hydraulic wheel  motor matching Parker TG0335HW spline shaft BSPP 1/2 ports
Product Overview

Low Speed High Torque Hydraulic Motor designed for manlifts and aerial work platforms, model BMER-2-350-WD-FD1-R-B with 350cc

Key Attributes
Product Low Speed High Torque Hydraulic Motor
Model No. BMER-2-350-WD-FD1-R-B
Size 350ml/r
Flange Wheel flange
Shaft spine shaft
Rotation CCW
Port G1/2
Material Cast iron
Technical Specifications
Type BMER 125 BMER 160 BMER 200 BMER 230 BMER 250 BMER 300 BMER 350 BMER 375 BMER 475 BMER 540 BMER 750
Geometric displacement (cm3/rev.) 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
Max. speed (rpm) int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
Max. torque (N•m) int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
Max. torque (N•m) peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
Max. output (kW) int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
Max. pressure drop (MPa) int. 24 24 24 24 24 24 24 24 19 17.5 12
Max. pressure drop (MPa) peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
Max. flow (L/min) int. 60 75 85 85 90 95 95 90 90 90 90

BMER-2-350 Hydraulic wheel  motor matching Parker TG0335HW spline shaft BSPP 1/2 ports 0
BMER-2-350 Hydraulic wheel  motor matching Parker TG0335HW spline shaft BSPP 1/2 ports 1BMER-2-350 Hydraulic wheel  motor matching Parker TG0335HW spline shaft BSPP 1/2 ports 2

In industrial production and mechanical equipment operation, the orbital motor as the core power components, its performance directly affects the operational efficiency and stability of the equipment. Choosing a reliable orbital motors supplier is a prerequisite for obtaining high-quality products and guaranteeing worry-free after-sales service. In the face of the many suppliers on the market, how to accurately select? The following key dimensions can be considered.

Consider the after-sales service and response speed

Good after-sales service is a strong guarantee in the process of product use. When choosing a supplier, it is necessary to understand its after-sales service policy, including the warranty period, maintenance services, technical support and so on. For example, whether the warranty period to provide free maintenance and replacement parts services, whether there is a professional technical team can provide remote or on-site technical support in a timely manner in the event of equipment failure. In addition, the supplier's response time is also critical. Take a construction machinery enterprise as an example, its use of orbital motor failure, the supplier can respond within 24 hours and send technicians to repair, greatly reducing equipment downtime, to protect the progress of the project.

Compare price and cost

Price is a factor to be considered when selecting suppliers, but not only the price as the selection criteria. Too low a price may mean that the quality of products or services have hidden problems, while too high a price does not necessarily mean that the product is of the best quality. When comparing prices, it is important to consider factors such as product performance, quality and after-sales service to calculate the total cost of ownership. You can request quotes from multiple suppliers, conduct detailed analysis and comparison, and choose the supplier with the best cost performance. At the same time, it is also necessary to pay attention to the price stability of the supplier to avoid frequent price fluctuations affecting the cost control of the enterprise.
