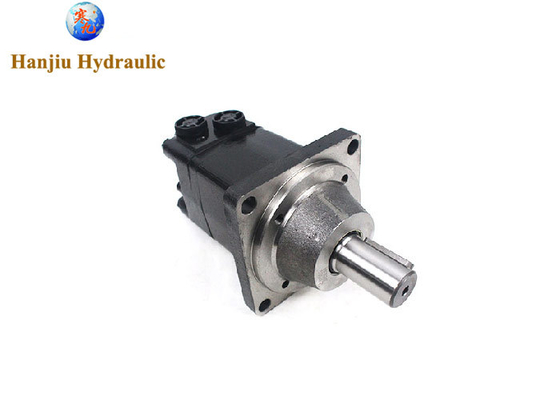

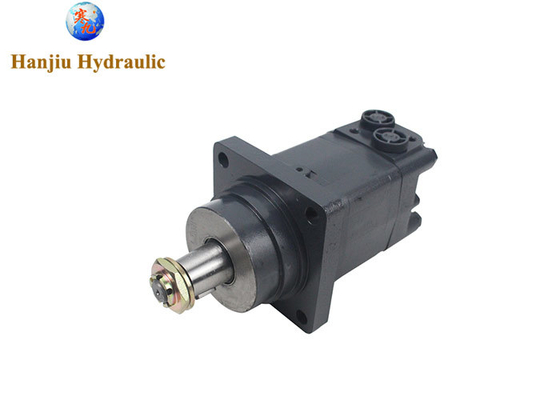

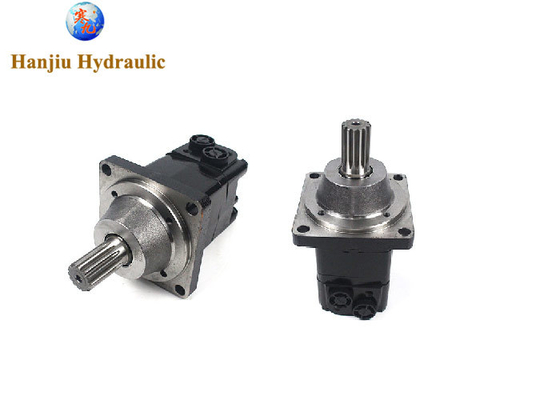

hydraulic orbit motors BMSY-315 with square flange for sugar beet harvesters
Product details:
type code BMSY-315-W-T1-D
Displacement:315CC
Flange:
4-Ø13.5 Wheel-flange Ø160 ,
Shaft:
Cone-shaft Ø35 ,parllel key B6×6×20
Ports:
G1/2 Manifold Mount;
2-M10 , G1/4
Hanjiu technology produce the BMSY series motors for harvesters. like sugar beet harvester,tomato harvester,potato harvester..
such as, BMSY80, BMSY100,BMSY125,BMSY160,BMSY200,BMSY250,BMSY315,BMSY375....
BMSY introduction:
This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
Main Specifications:
| Type |
BMSY
80 |
BMSY
100 |
BMSY
125 |
BMSY
160 |
BMSY
200 |
BMSY
250 |
BMSY
315 |
BMSY
375 |
Geometric displacement
(cm3 /rev.) |
80.6 |
100.8 |
125 |
157.2 |
200 |
252 |
314.5 |
370 |
| Max. speed (rpm) |
cont. |
800 |
748 |
600 |
470 |
375 |
300 |
240 |
200 |
| int. |
988 |
900 |
720 |
560 |
450 |
360 |
280 |
240 |
| Max. torque (N·m) |
cont. |
190 |
240 |
310 |
316 |
400 |
450 |
560 |
536 |
| int. |
240 |
300 |
370 |
430 |
466 |
540 |
658 |
645 |
| peak |
260 |
320 |
400 |
472 |
650 |
690 |
740 |
751 |
| Max. output (kW) |
cont. |
15.9 |
18.8 |
19.5 |
15.6 |
15.7 |
14.1 |
14.1 |
11.8 |
| int. |
20.1 |
23.5 |
23.2 |
21.2 |
18.3 |
17 |
18.9 |
17 |
| Max. pressure drop (MPa) |
cont. |
17.5 |
17.5 |
17.5 |
15 |
14 |
12.5 |
12 |
10 |
| int. |
21 |
21 |
21 |
21 |
16 |
16 |
14 |
12 |
| peak |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
20 |
18.5 |
14 |
| Max. flow (L/min) |
cont. |
65 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
| int. |
80 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
| Max. inlet pressure (MPa) |
cont. |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
| int. |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
| Weight (kg) |
9.8 |
10 |
10.3 |
10.7 |
11.1 |
11.6 |
12.3 |
12.6 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute
Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems
Key applications in harvesters
orbital motor is widely used in several core systems of harvesters:
Walking drive system: In the hydrostatic transmission system, it utilizes its low-speed and high-torque characteristics to drive the walking wheels or tracks of the harvester either directly or through a simple deceleration mechanism. By adjusting the hydraulic oil flow, the travel speed can be infinitely adjusted to ensure the flexibility and stability of the machine in complex terrain such as slopes and mud.
Cutting platform control system: Provide strong and smooth driving force for the rapid elevation of the cutting platform, and support the automatic profiling function of the cutting platform according to the terrain (control the elevation cylinder).
Material Conveyor System: Drive the conveyor chain, agitator, elevator and other mechanisms between the cutting platform to the threshing drum and the cleaning device to the grain bin to provide continuous and stable speed and torque to ensure the smooth and unobstructed flow of crop materials.
Attachment drives: for bin unloading agitators, straw chopping devices or baling devices, etc. The modular design facilitates integration and installation.
